¶ Bluetooth Devices

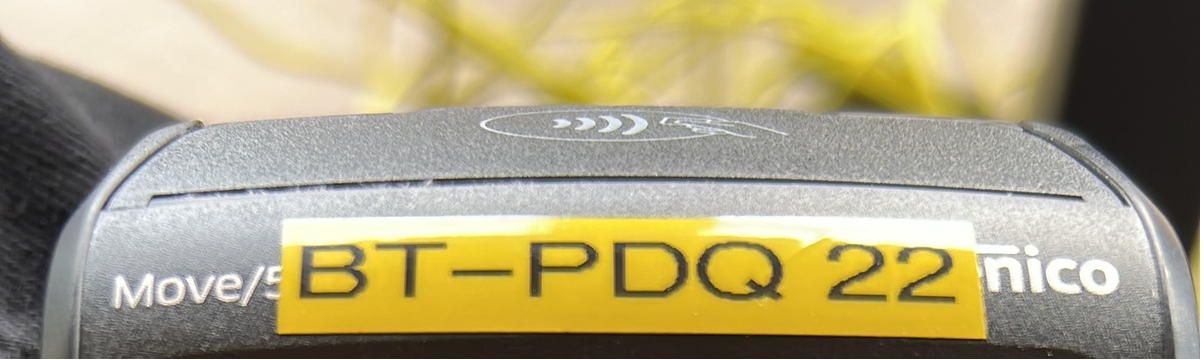

Bluetooth devices will have "BT" labelled on the front of the device
If the device is labelled "GPRS" click the link below and follow the instructions

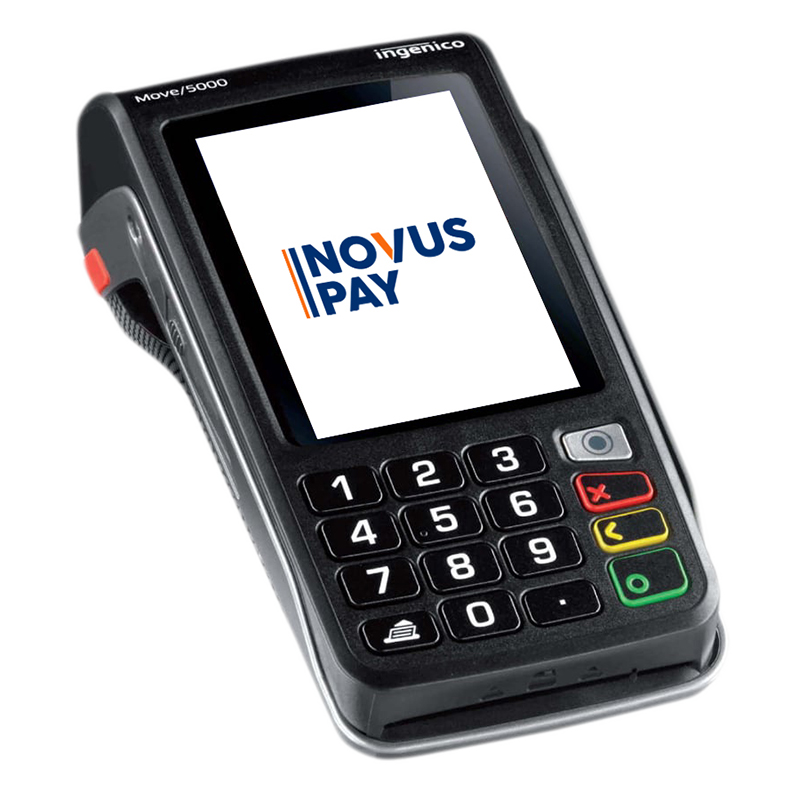

¶ Move/5000 Ingenico Devices
- GPRS Mobile - Payment device will connect to mobile networks, can be used anywhere on-site with mobile signal.
- Standalone - These terminals are not connected to the POS system, you will have to manually complete a transaction on the till with "Standalone Card" as tender
- 4-Hour Battery Life - Devices will last between 3-4 hours of constant use without charge. Please keep on charge when not in use!
¶ How to Process a Transaction - IMAGES TO BE REPLACED

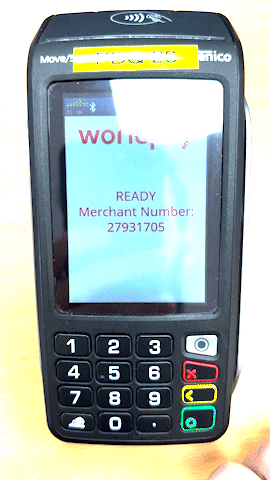

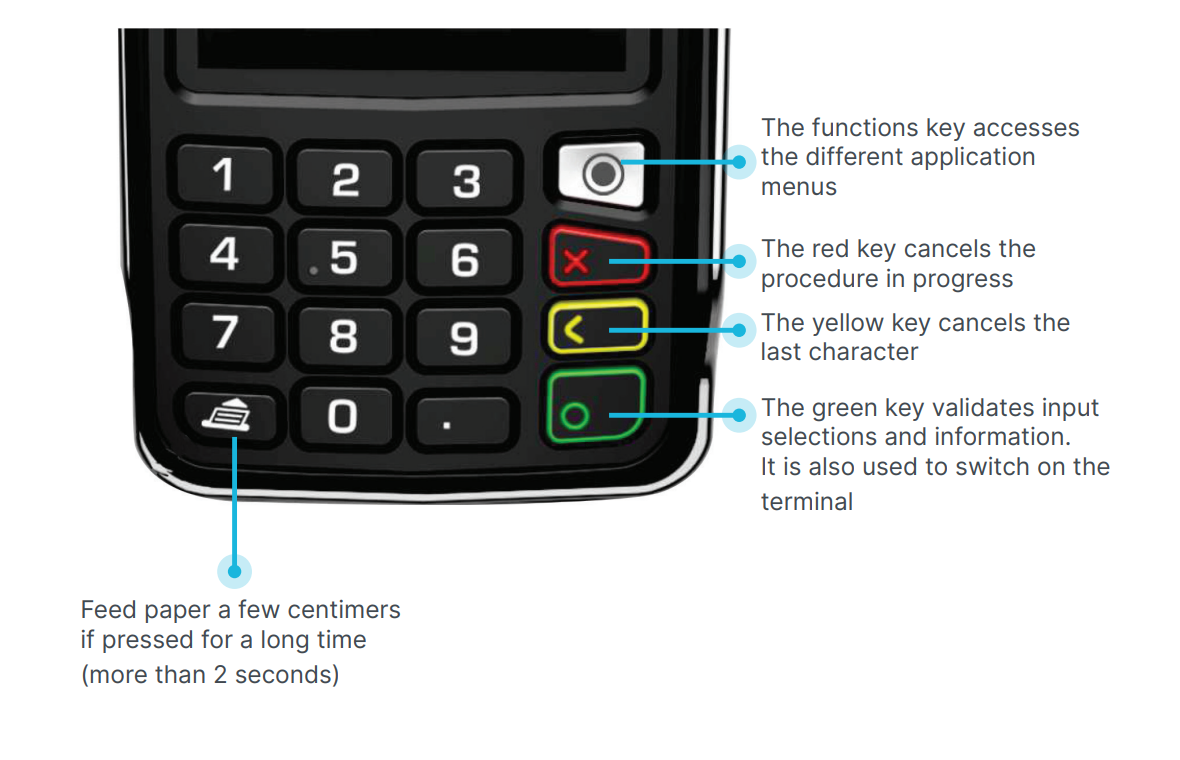

1: Press the Green enter
key to activate the terminal.

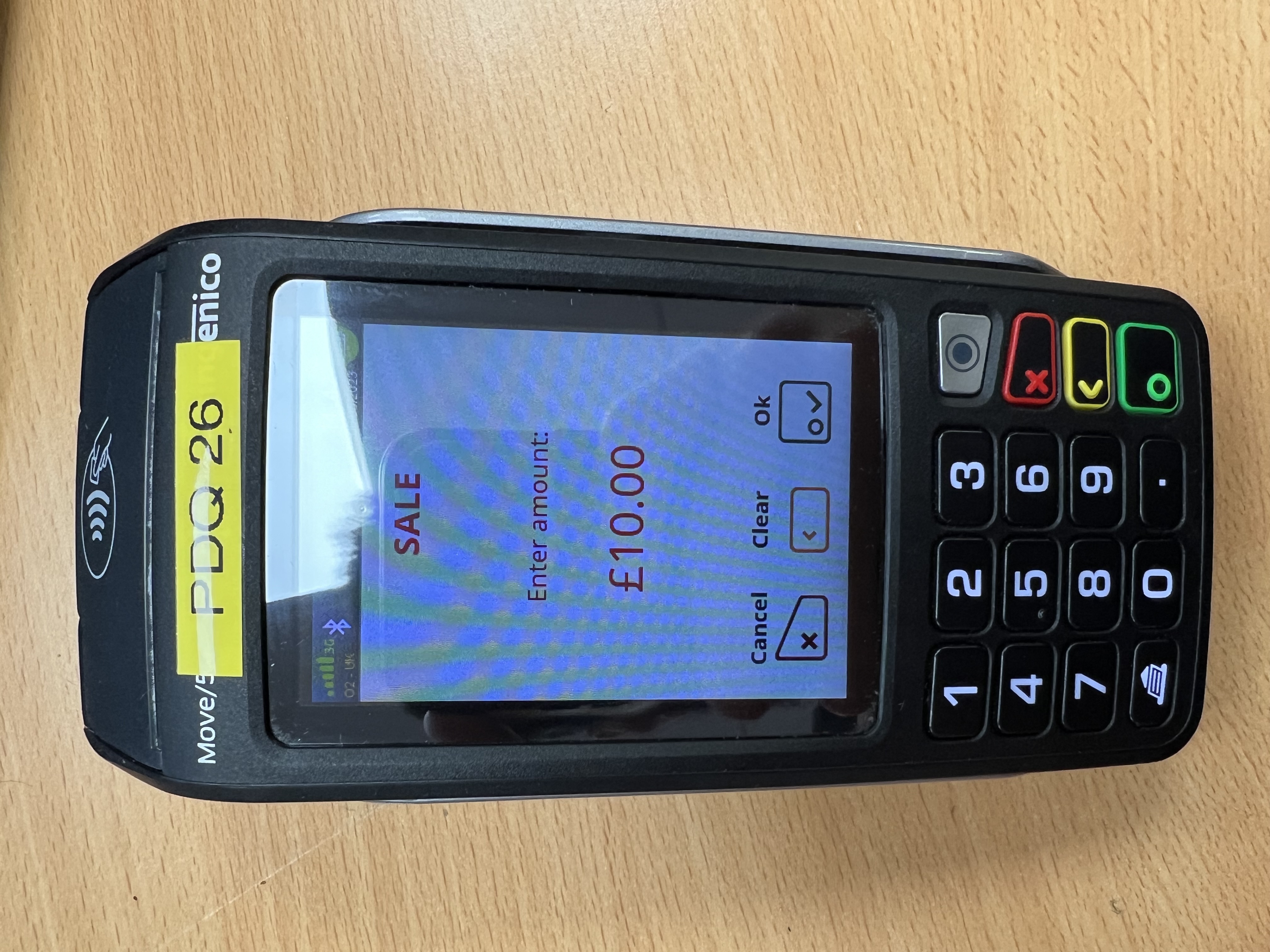

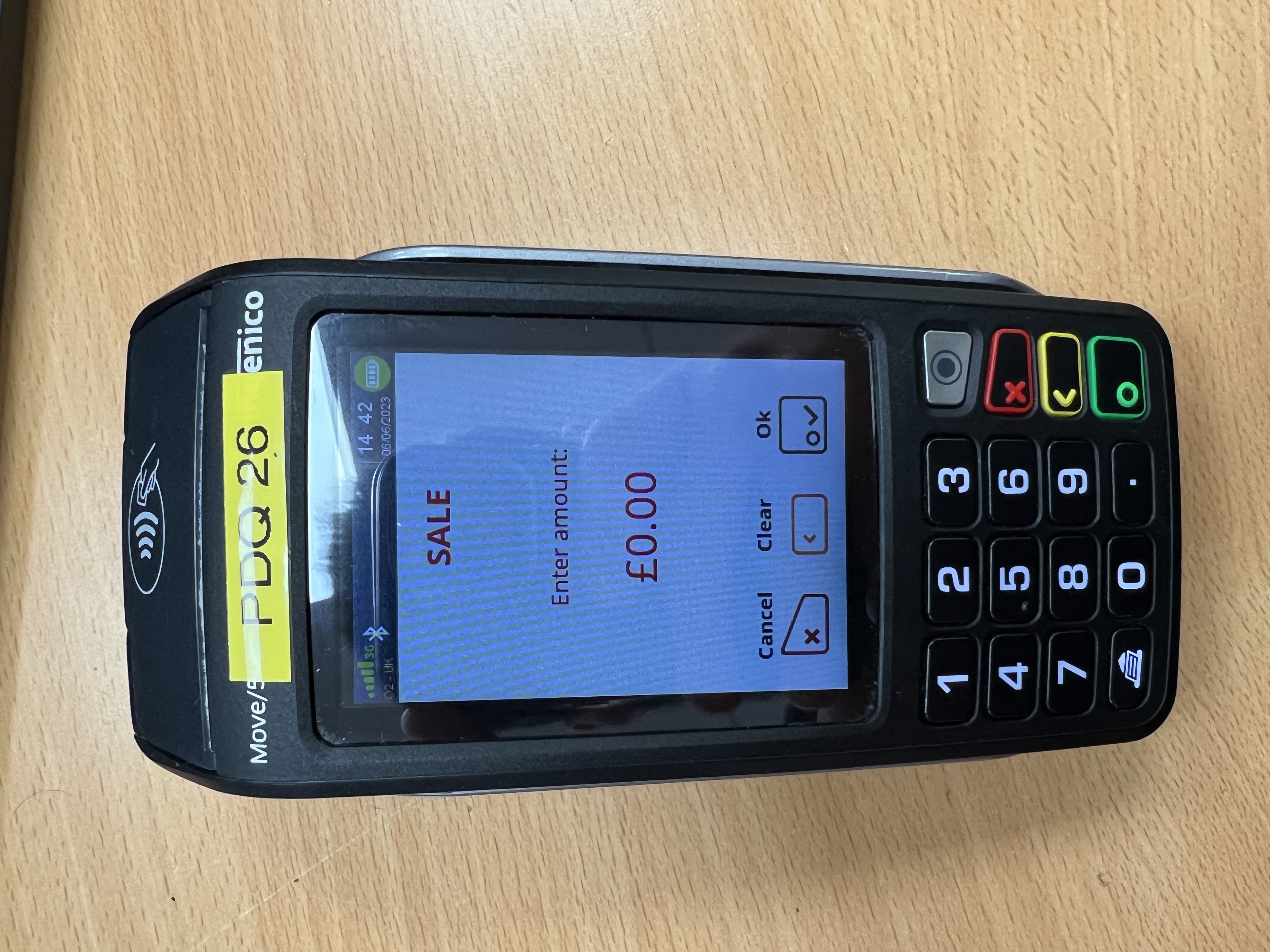

2: Enter the payment amount into the Keypad
3: Press the Green enter key to activate the payment
-

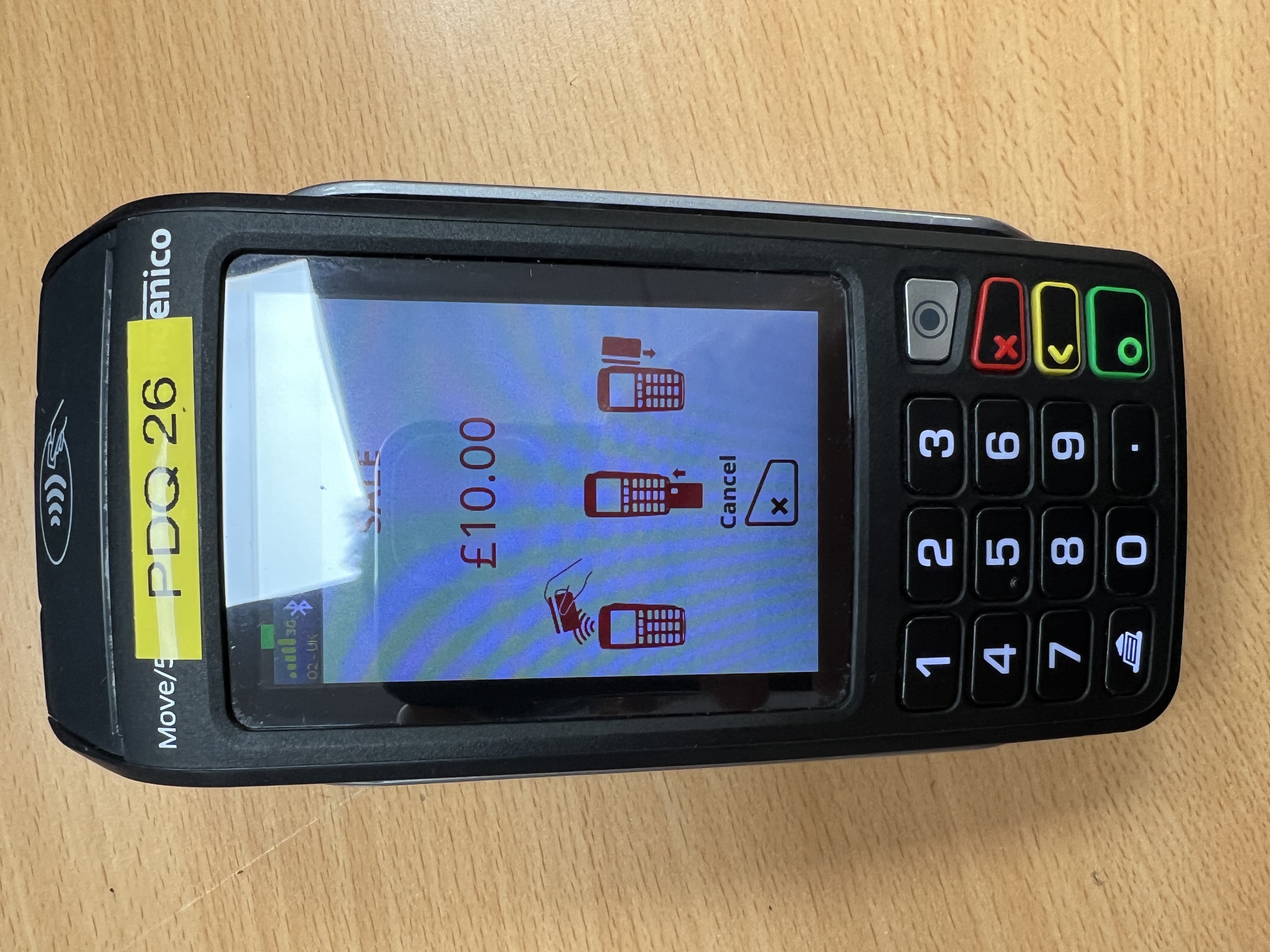

4: Client can pay via Contactless or insert a card and enter the PIN -

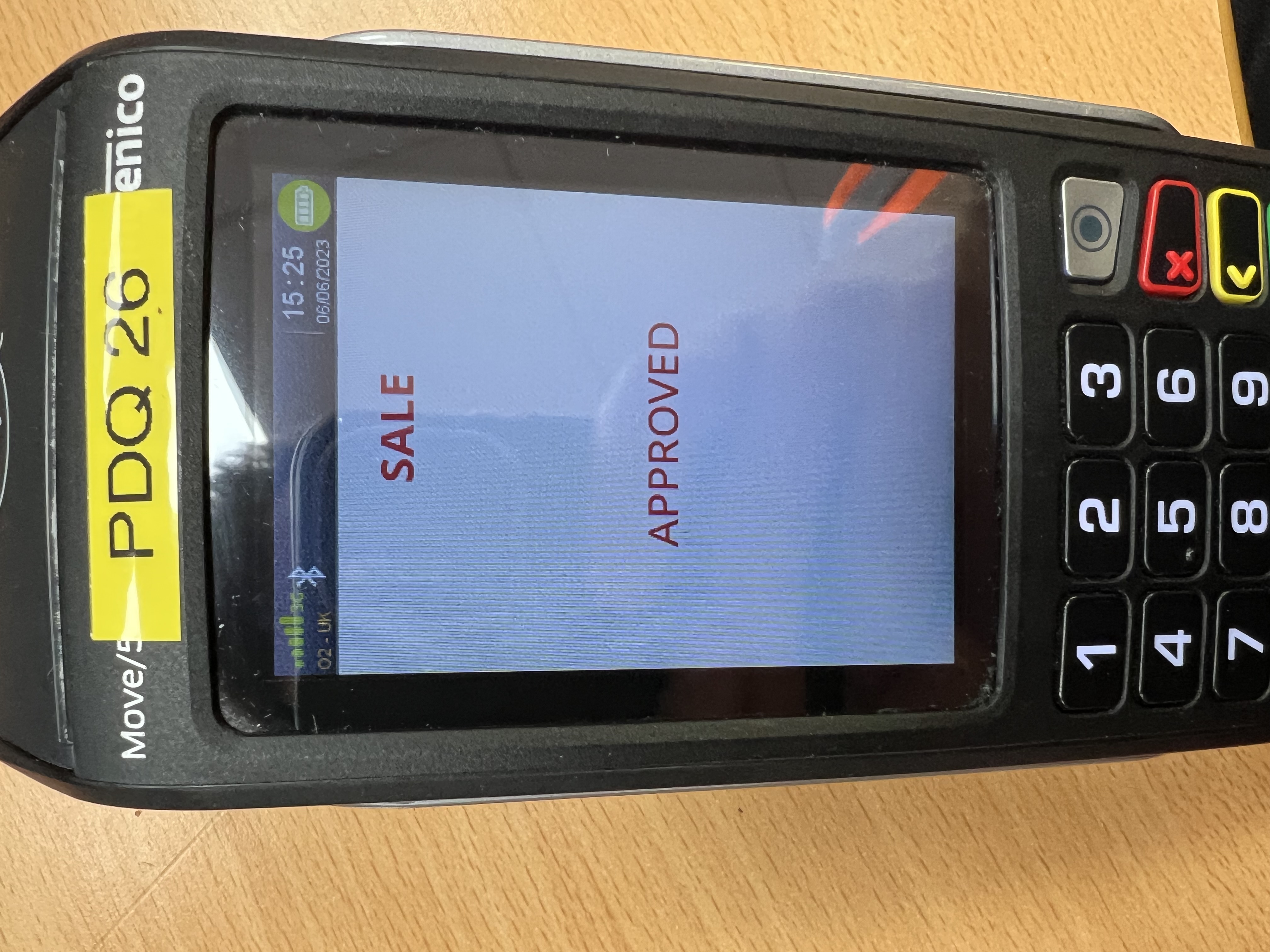

5: The Terminal will display a "APPROVED" message if the transaction has been successful
6: The Terminal will display a "DECLINED" message if the transaction has been declined
¶ Change the Paper Roll

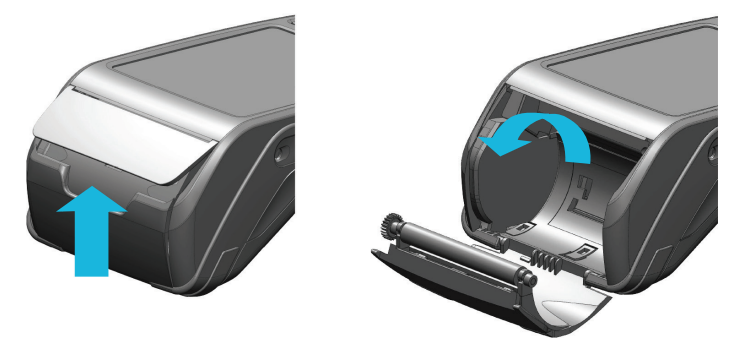

1: Open the paper compartment by lifting the catch located at the rear of the terminal and pull the cover to the rear of the terminal.

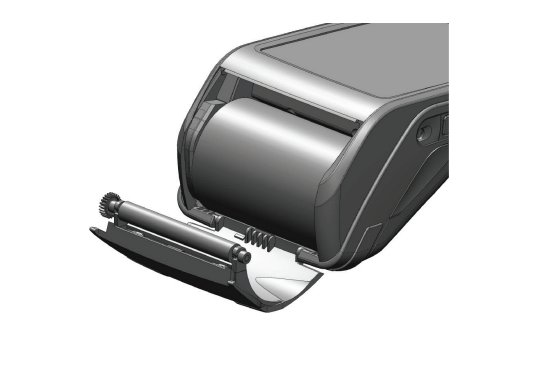

2: Insert the paper roll in the compartment following the directions shown on the below picture3: Pull the paper up to the top of the terminal4: Maintain the paper and close the lid5: Press simultaneously on both upper corners of the paper flap, as shown by arrows on picture, until it clips into position
¶ End of Day Process: Z-Report
How to correctly pull a Z-Report from a standalone Move/500 GPRS Card Terminal

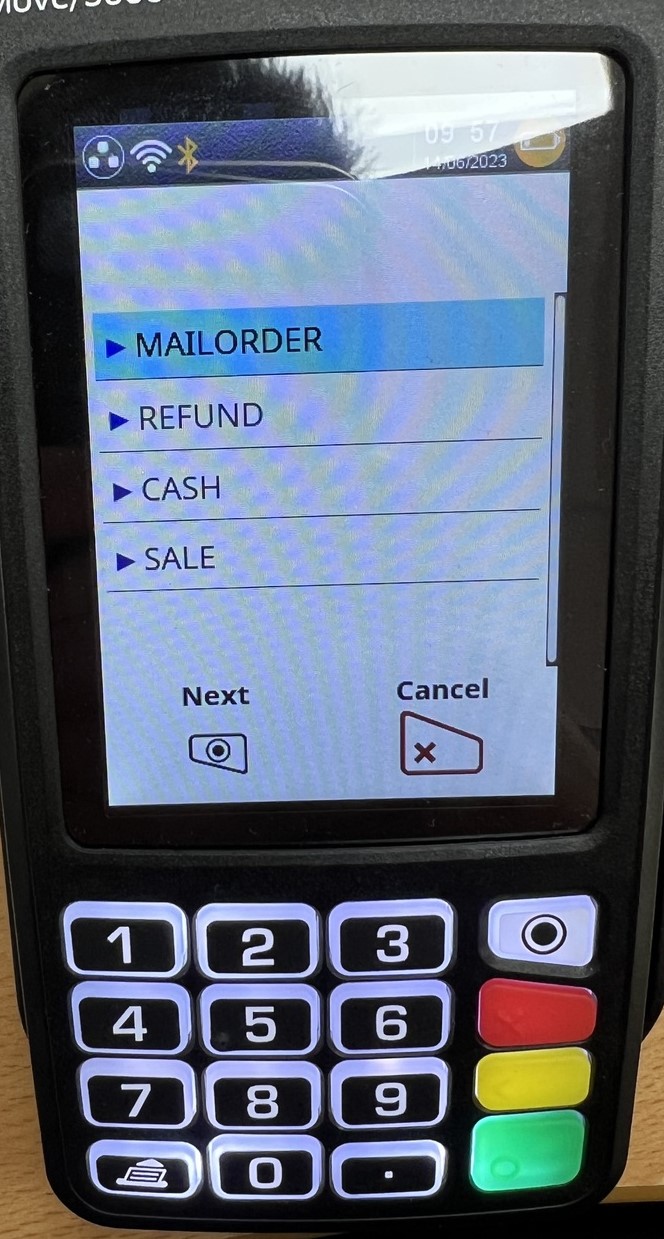

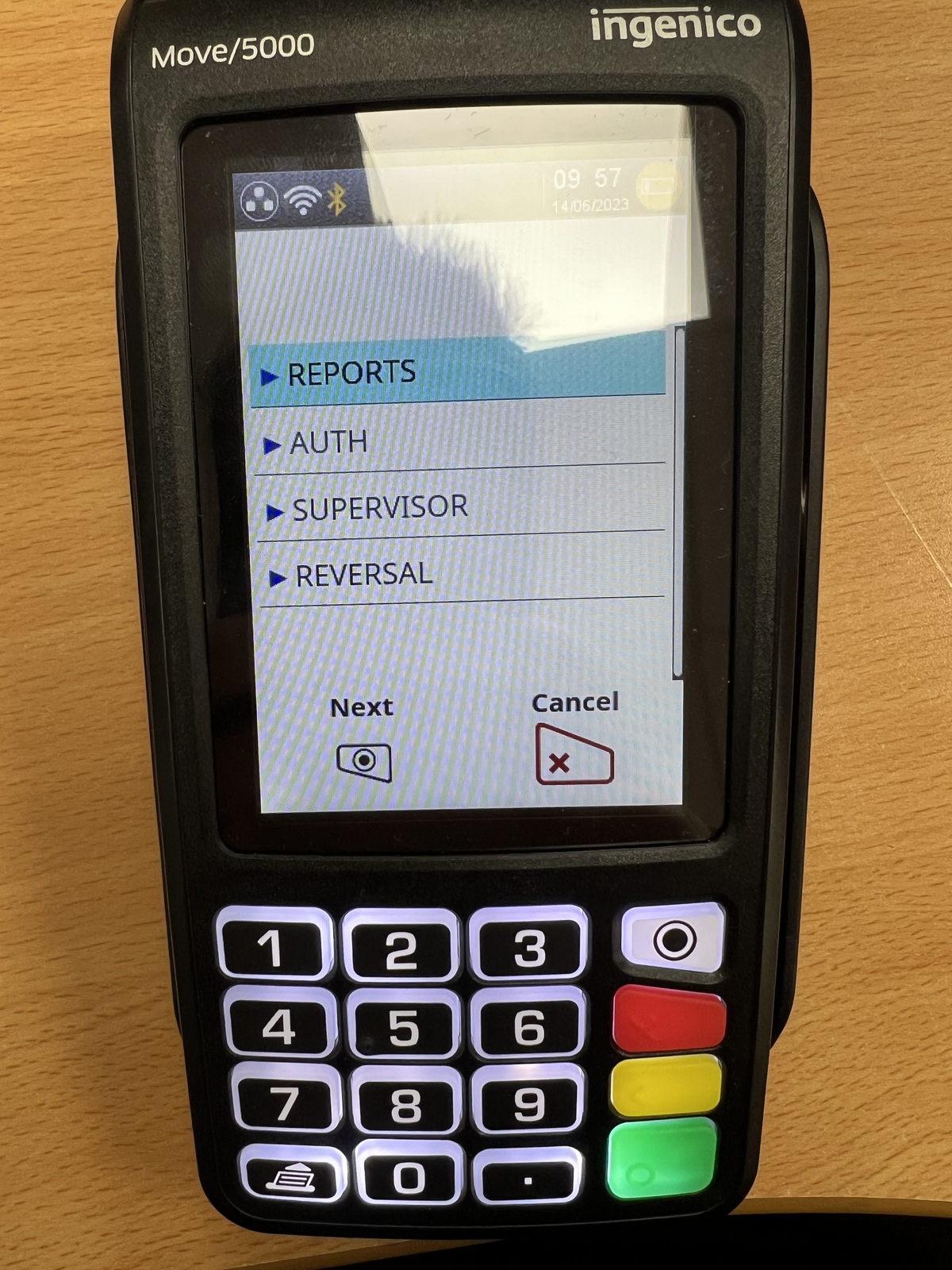

1: On the terminal, Press the black
key twice (2) to bring up the application menu page

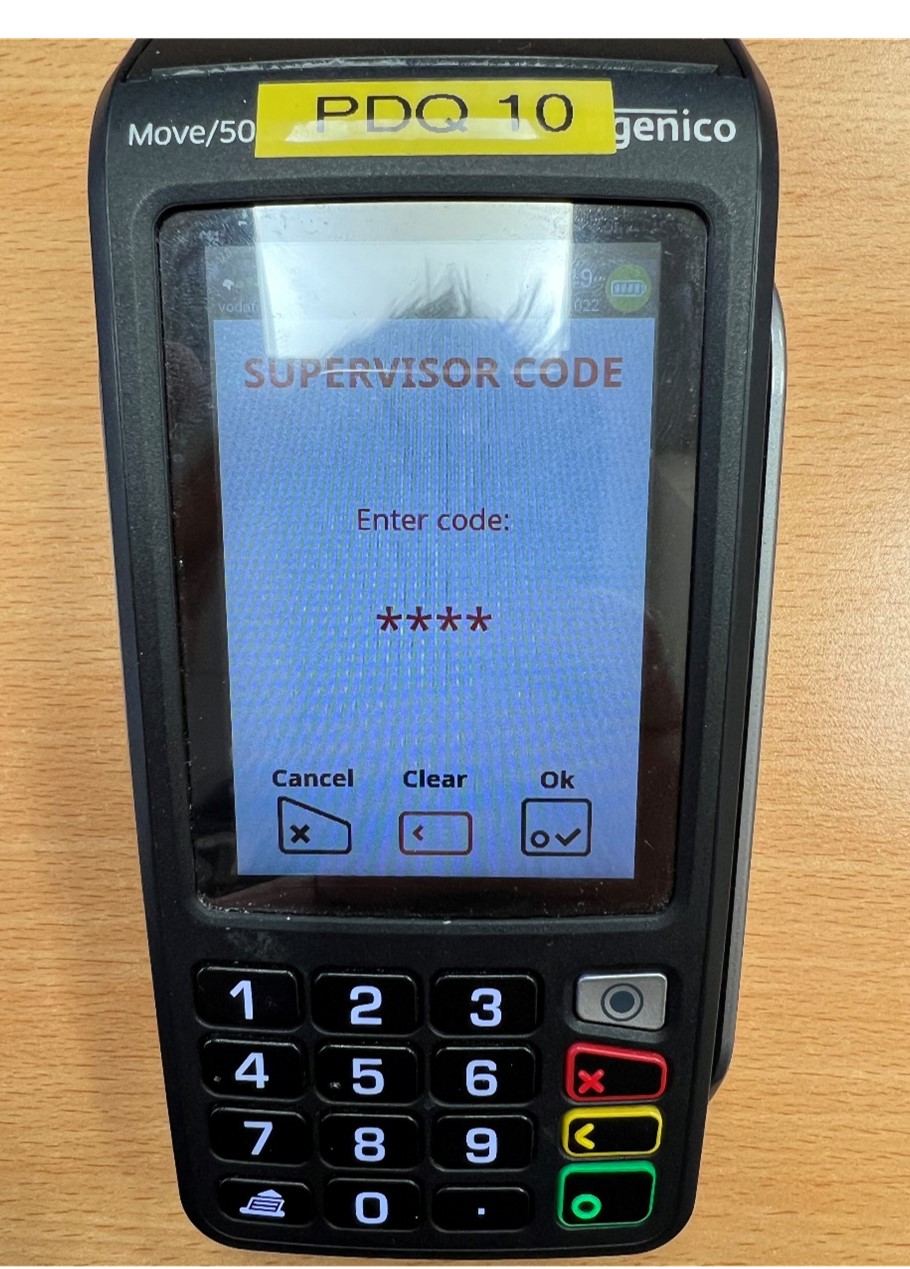

2: Press the Green enter key to display the Total / Reports menu, you will be prompted for a Supervisor Code
IF YOU DO NOT KNOW THE PIN CODE
DO NOT GEUSS! THE TERMINAL WILL BE LOCKED ON 2 ATTEMPTS
VISIT CASH OFFICE FOR PIN CODE
3: Enter the Code: XXXX and press enter

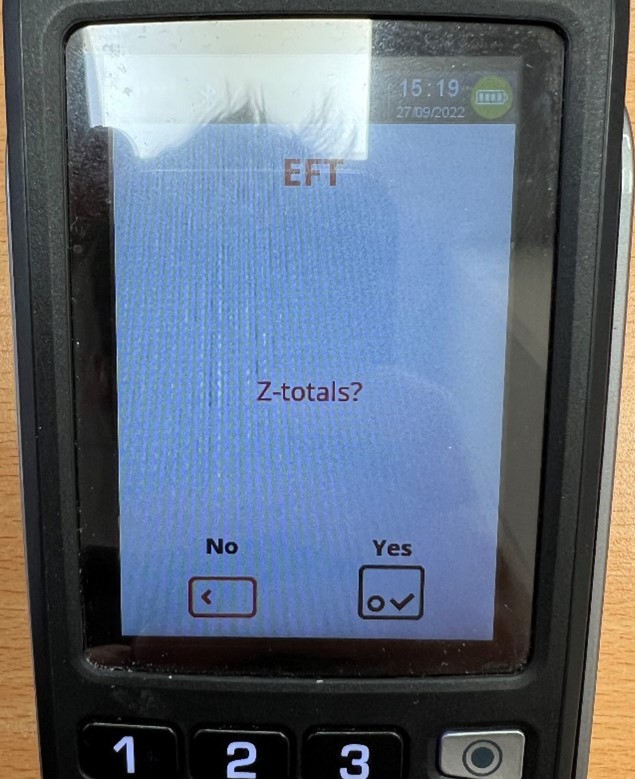

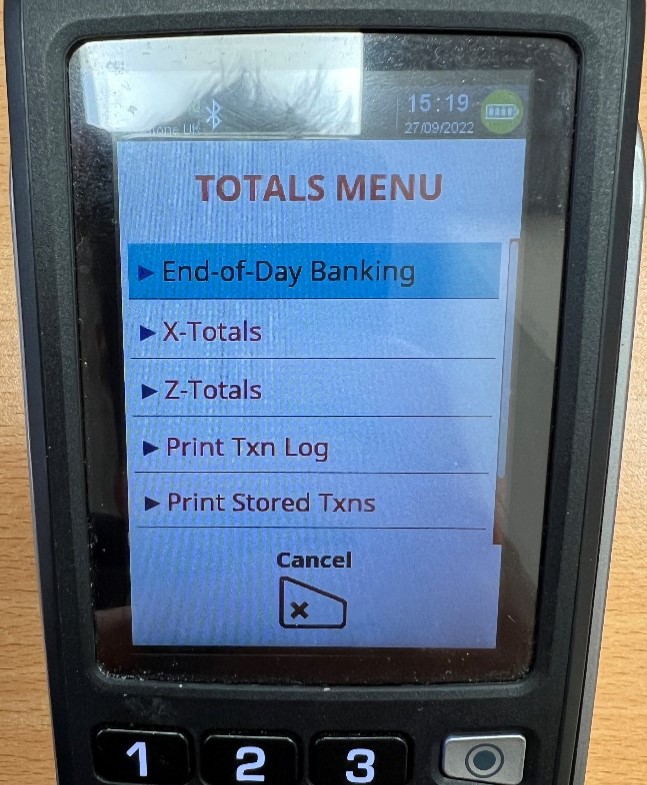

4: Select "Z-Totals" from the menu (Press the screen)
5: Press the Green enter key to run the Z-Report

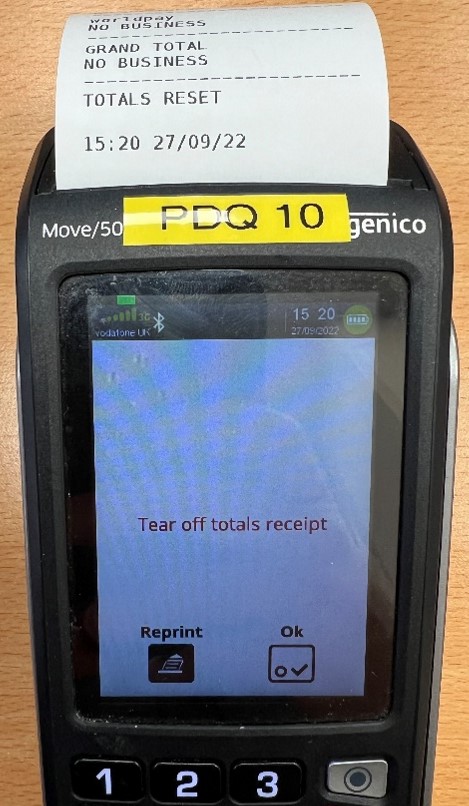

5: The Z-Report will now be printed out for you, once complete press the Green enter key6: If the Z-Report has not printed out, check the receipt roll is full and in the correct way around. Press Reprint to print the report again.
Once you leave this page you are unable to re-print the z-report
Check you have printer roll before starting a Z-Report
Visit cash office if you require more
If you have locked the terminal, please return it to Cash office and explain what has happened.
PLEASE! PLEASE! PLEASE!, do not lock them.
